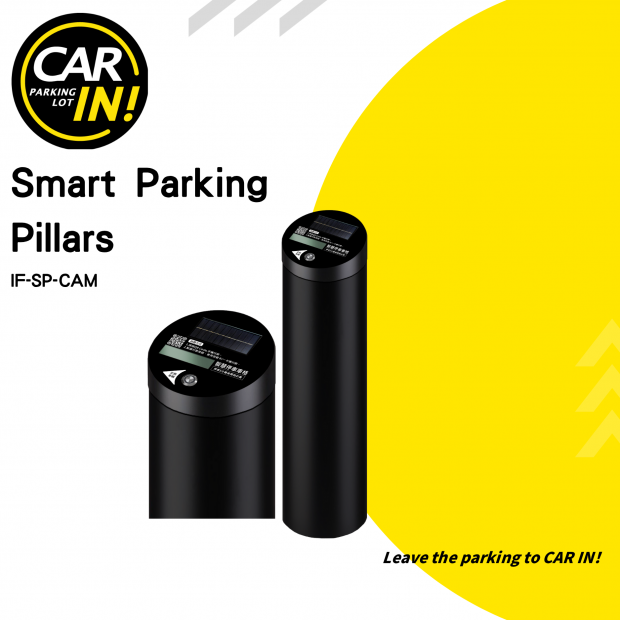

Smart Parking Pillars

Smart Parking Pillars

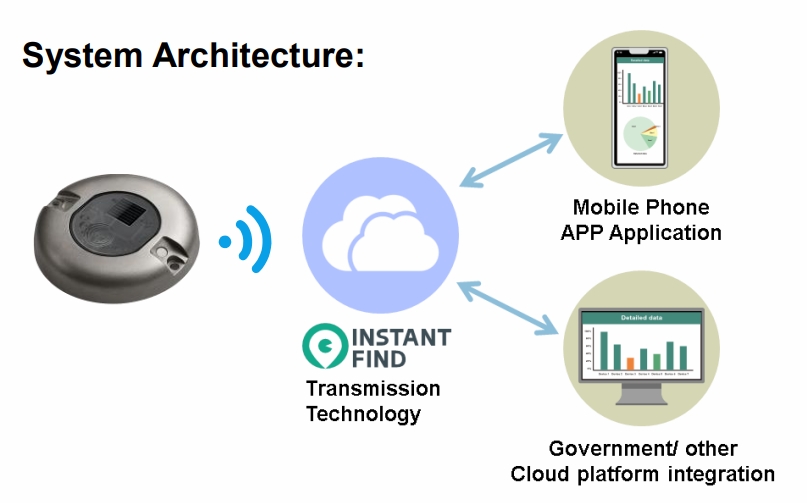

.Smart parking system uses geomagnetic/millimeter wave radar authentications based on InstantFind technology. It can accurately
determine the vehicle entering and exiting the parking space.
.Vehicle entry and exit data are transmitted using long range BLE transmission technology without telecommunication fees.
.Low-carbon emission parking presence detection system.
.Small solar panels or primary cell batteries.
.The device is light, thin and short, making construction and installation quick and easy.
.IP68 waterproof, with pressure resistance of 5 tons.
.Operates from -20℃ ~ 80℃, can cope with the high temperature asphalt environment in summer.
.High-performance flood detection enables real-time monitoring of water accumulation, allowing rapid emergency response.
.Surface Installation.
DETAIL


Product Specifications

Item Specifications
Image sensor 1/2.8 inch CMOS sensor
Resolution 2MP (1920 x 1080)
Type Fixed lens / Focal length: f=2.8mm, F1.85
Viewing angle 120° (H), 62° (V), 140° (D)
Local Storage Supports Micro SD/SDHC/SDXC slot, supports memory card up to 256GB
Video compression format H.264/MJPEG
Image resolution 1080P@30fps / 720P@30fps
Alarm Notification Send event images /snapshots to FTP/Email/HTTP/Email notification
Network Interface 4G/LTE Cat.1 bis Nano SIM module
Communication protocols TCP/IP, UDP, DHCP, NTP, DNS, SMTP, FTP, Samba, UPnP, RTP, RTSP, RTCP
Power input DC 5V 2A / USB Type-C connector
Housing IP66 waterproof and dustproof
