Access Control

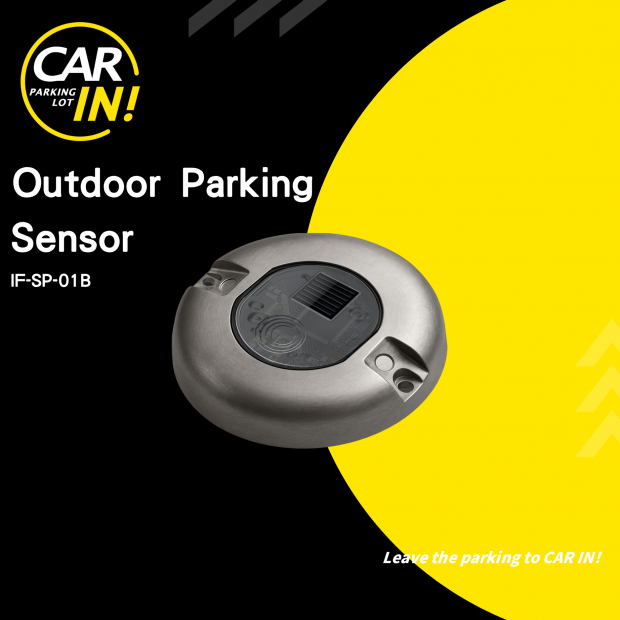

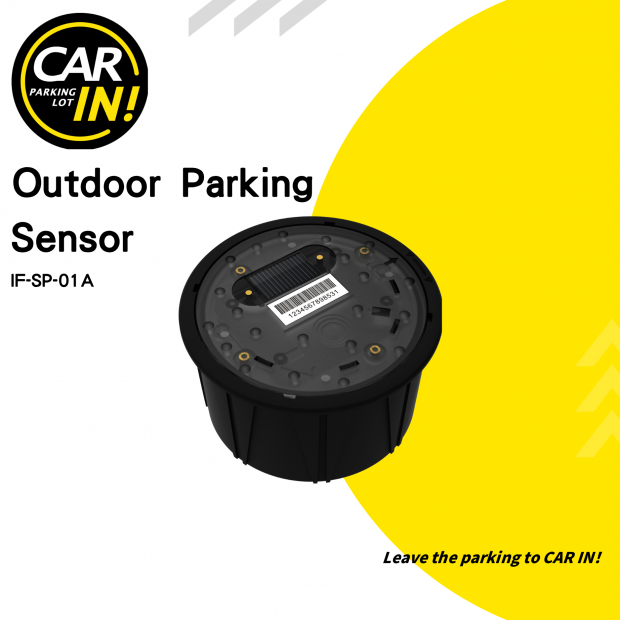

．Smart parking system uses geomagnetic/millimeter wave radar authentications based on InstantFind technology. It can accurately
determine the vehicle entering and exiting the parking space.
．Vehicle entry and exit data are transmitted using long range BLE transmission technology without telecommunication fees.
．Low-carbon emission parking presence detection system.
．Small solar panels or primary cell batteries.
．The device is light, thin and short, making construction and installation quick and easy.
．IP68 waterproof, with pressure resistance of 5 tons.
．Operates from -20℃ ~ 80℃, can cope with the high temperature asphalt environment in summer.
．High-performance flood detection enables real-time monitoring of water accumulation, allowing rapid emergency response.
．Surface Installation.

．Smart parking system uses geomagnetic/millimeter wave radar authentications based on InstantFind technology. It can accurately
determine the vehicle entering and exiting the parking space.
．Vehicle entry and exit data are transmitted using long range BLE transmission technology without telecommunication fees.
．Low-carbon emission parking presence detection system.
．Small solar panels or primary cell batteries.
．The device is light, thin and short, making construction and installation quick and easy.
．IP68 waterproof, with pressure resistance of 5 tons.
．Operates from -20℃ ~ 80℃, can cope with the high temperature asphalt environment in summer.
．High-performance flood detection enables real-time monitoring of water accumulation, allowing rapid emergency response.
．Surface Installation.

．Smart parking system uses geomagnetic/millimeter wave radar authentications based on InstantFind technology. It can accurately
determine the vehicle entering and exiting the parking space.
．Vehicle entry and exit data are transmitted using long range BLE transmission technology without telecommunication fees.
．Low-carbon emission parking presence detection system.
．Small solar panels or primary cell batteries.
．The device is light, thin and short, making construction and installation quick and easy.
．IP68 waterproof, with pressure resistance of 5 tons.
．Operates from -20℃ ~ 80℃, can cope with the high temperature asphalt environment in summer.
．High-performance flood detection enables real-time monitoring of water accumulation, allowing rapid emergency response.
．Surface Installation.

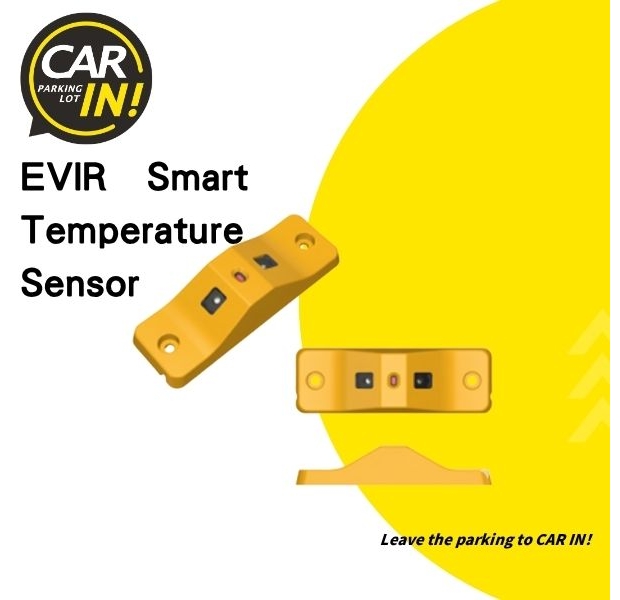

Top 5 Benefits of EV IR Intelligent Thermal Sensing










Precise Monitoring：Ground-mounted installation accurately detects temperature changes in the chassis battery.
Instant Alert：Immediate alarm triggered when temperature reaches 60∘C OR rises 5∘C within 3 seconds.
Wide-Angle Detection：Dual sensors with 512 detection points each for comprehensive temperature monitoring.
System Integration：Supports connection with other systems to push real-time alerts.
Waterproof & Pressure-Resistant：Waterproof and 2-ton pressure resistance to adapt to various parking environments.






Application Scenarios






Product Specifications










Item
Specifications


Temperature Measurement Range
-20~300℃


Accuracy
±2℃


Detection Range / Frequency
50cm


Alert Thresholds / Alarm Triggers
60∘C, temperature increases by more than 5∘C within 3 seconds.


Pressure Resistance
2 Tons


Network Connection
Ethernet


Power Supply
AC 110V


Operating Conditions
Temperature: 0 to 50 ∘C / Humidity: <85% RH


Dimensions
(L)245×(W)82×(H)20 to 50 mm


Certification
BSMI
